The Quercus rack - Modular solution with high load capacity

Modular system for loads up to 2,250 kg

Configure the JOWI Q Series Mobile Rack in line with your needs:
L-shaped uprights with castors and support tubes are connected together by cross tubes to create a sturdy rack. i-shaped uprights can also be added to increase the maximum load capacity of the storeys. These uprights can be positioned anywhere along the length of the rack.

The high quality double castors ensure easy manoeuvrability – even when the Quercus is fully loaded.

Quercus 2/0 configuration

The JOWI Quercus Mobile Rack with a 2/0 configuration comprises 2 L-shaped uprights with support tubes and castors. The L-shaped uprights are connected to 3 (or 2) cross tubes. There are 2 support tubes to every storey.

Range of use:
Maximum load per rack 1,500 kg, depth of support from 640 mm to 1,380 mm and rack length from 800 mm up to 6,000 mm.

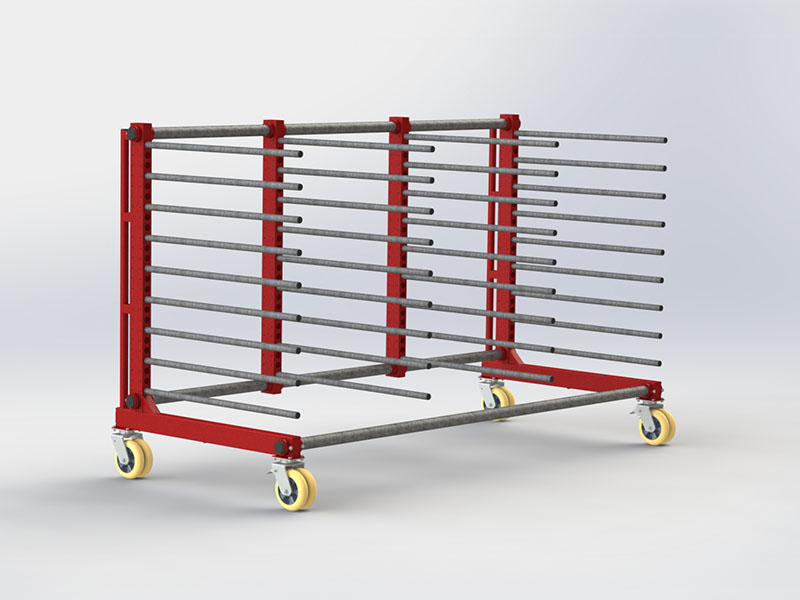

2 L-shaped uprights Q640

Q640-2/0 rack length 2,000 mm

Technical data

Q - 2/0

MODEL	Q640-2/0	Q740-2/0	Q880-2/0	Q1080-2/0	Q1380-2/0

L-shaped uprights with support tubes	2	2	2	2	2
i-shaped uprights with support tubes	0	0	0	0	0
Number of support tube holes on each upright	25	25	25	25	25
Number of support tubes per upright = storeys	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)
Spacing	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES	YES	YES	YES
Diameter of support tubes	34 mm	34 mm	34 mm	34 mm	34 mm
Usable length of support tubes	640 mm	740 mm	880 mm	1.080 mm	1.380 mm
Finish of support tubes	galvanised	galvanised	galvanised	galvanised	galvanised
Maximum load per support tube / per storey with 2 support tubes	60 / 120 kg*	50 / 100 kg*	42 / 84 kg*	35 / 70 kg*	27 / 54 kg*
Maximum load of the whole rack	1,500 kg*	1,500 kg*	1,500 kg*	1,500 kg*	1,500 kg*
Ballbearing double steering castors with cast polyurethane tread	4 x Ø 200 mm	4 x Ø 200 mm	4 x Ø 200 mm	4 x Ø 200 mm	4 x Ø 200 mm
Number of lockable castors	2	2	2	2	2
Depth x height in mm	880 x 1,810	980 x 1,810	1,120 x 1,810	1,320 x 1,810	1,620 x 1,810
available lengths in mm	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

Quercus 3/0 configuration

The JOWI Quercus Mobile Rack with a 3/0 configuration comprises 3 L-shaped uprights with support tubes and castors. The L-shaped uprights are connected to 3 (or 2) cross tubes. There are 3 support tubes to every storey.

Range of use:
Maximum load per rack 2,250 kg, depth of support from 640 mm to 1,380 mm and rack length from 800 mm up to 6,000 mm.

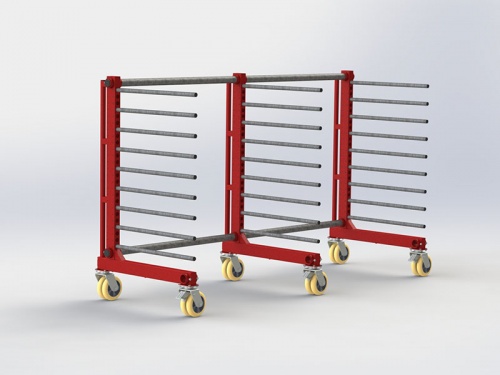

3 L-shaped uprights Q880

Q880-3/0 rack length 3,000 mm

Technical data

Q - 3/0

MODEL	Q640-3/0	Q740-3/0	Q880-3/0	Q1080-3/0	Q1380-3/0

L-shaped uprights with support tubes	3	3	2	3	3
i-shaped uprights with support tubes	0	0	0	0	0
Number of support tube holes on each upright	25	25	25	25	25
Number of support tubes per upright = storeys	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)
Spacing	174 mm with 7 storeys 122 mm with9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES	YES	YES	YES
Diameter of support tubes	34 mm	34 mm	34 mm	34 mm	34 mm
Usable length of support tubes	640 mm	740 mm	880 mm	1,080 mm	1,380 mm
Finish of support tubes	galvanised	galvanised	galvanised	galvanised	galvanised
Maximum load per support tube / per storey with 3 support tubes	60 / 180 kg*	50 / 150 kg*	42 / 126 kg*	35 / 105 kg*	27 / 81 kg*
Maximum load of the whole rack	2,250 kg*	2,250 kg*	2,250 kg*	2,250 kg*	2,250 kg*
Ballbearing double steering castors with cast polyurethane tread	6 x Ø 200 mm	6 x Ø 200 mm	6 x Ø 200 mm	6 x Ø 200 mm	6 x Ø 200 mm
Number of lockable castors	3	3	3	3	3
Depth x height in mm	880 x 1,810	980 x 1,810	1,120 x 1,810	1,320 x 1,810	1,620 x 1,810
available lengths in mm	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
8 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

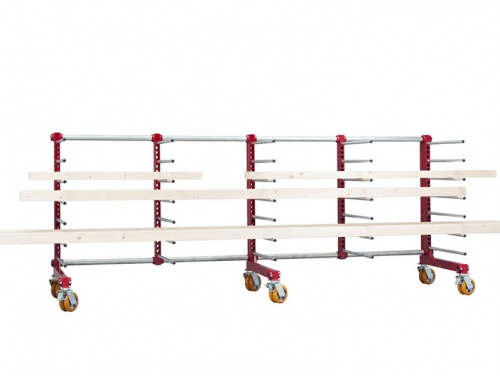

Q880-3/2 with 7 storeys and a rack length of 4500 mm

Rack can be extended using i-shaped uprights with support tubes

i-shaped uprights with support tubes can also be added to increase the maximum load capacity of the storeys and provide greater support for the items in the rack. These uprights can be positioned anywhere along the length of the rack.

Quercus 2/2 configuration

The JOWI Quercus Mobile Rack with a 2/2 configuration comprises 2 L-shaped uprights with support tubes and castors as well as 2 i-shaped uprights with support tubes, without castors . The L-shaped uprights are connected to 3 (or 2) cross tubes. There are 4 support tubes to every storey.

Range of use:
Maximum load per rack 1,500 kg, depth of support from 640 mm to 1,380 mm and rack length from 800 mm up to 6,000 mm.

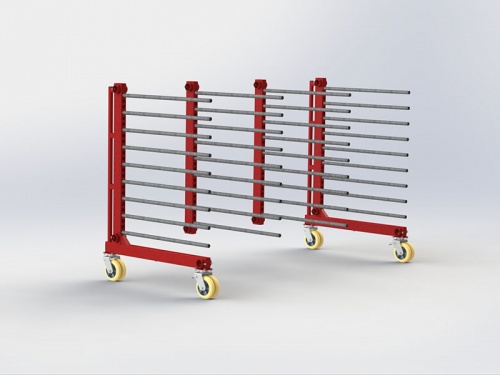

2 L-shaped uprights and 2 i-shaped uprigths Q1080

Q1080-2/2 rack length 3,000 mm

Technical data

Q - 2/2

MODEL	Q640-2/2	Q740-2/2	Q880-2/2	Q1080-2/2	Q1380-2/2

L-shaped uprights with support tubes	2	2	2	2	2
i-shaped uprights with support tubes	2	2	2	2	2
Number of support tube holes on each upright	25	25	25	25	25
Number of support tubes per upright = storeys	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)	9 (7 or 13 on request)
Spacing	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys	174 mm with 7 storeys 122 mm with 9 storeys 70 mm with 13 storeys
Fixture of support tubes: Pre-punched holes for adjustable spacing	YES	YES	YES	YES	YES
Diameter of support tubes	34 mm	34 mm	34 mm	34 mm	34 mm
Usable length of support tubes	640 mm	740 mm	880 mm	1.080 mm	1.380 mm
Finish of support tubes	galvanised	galvanised	galvanised	galvanised	galvanised
Maximum load per support tube / per storey with 4 support tubes	60 / 240 kg*	50 / 200 kg*	42 / 168 kg*	35 / 140 kg*	27 / 108 kg*
Maximum load of the whole rack	1,500 kg*	1,500 kg*	1,500 kg*	1,500 kg*	1,500 kg*
Ballbearing double steering castors with cast polyurethane tread	4 x Ø 200 mm	4 x Ø 200 mm	4 x Ø 200 mm	4 x Ø 200 mm	4 x Ø 200 mm
Number of lockable castors	2	2	2	2	2
Depth x height in mm	880 x 1,810	980 x 1,810	1,120 x 1,810	1,320 x 1,810	1,620 x 1,810
available lengths in mm	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000	800 / 1,200 / 1,500/ 2,000/ 3,000/ 4,500/ 6,000
Painted steel frame	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson	RAL 3004 crimson
Shipped part-assembled in a box L x W x H in mm
Net / gross weight in kg
4 boxes per pallet L x W x H in mm

* Please note: loads must be evenly distributed. No impact loads

You decide how much space you need between each storey.

A few quick and easy turns of a hexagon socket set screw is all it takes to adjust the height of each storey to exactly how you want it.

Manoeuvring is child's play

even in restricted areas with a full load, thanks to ball bearing steering castors and their convex tread

"Scissor" frame or fixed frame: you save space whichever you choose.

Unloaded JOWI fixed frame racks stack simply inside one another. And it’s just as simple if you choose the scissor frame design. The length of empty racks can quickly and easily be reduced to a fraction of their overall length.
